說明:
本系列收集了自控儀表管路系統中各種連接形式和結構式管接頭、短節、管嘴、轉管接頭溫度計套管等產品,品種多、規格全,適用廣,是管路中必不可少的連接件。玻璃板液面計接頭YZG13系列適用于各種容器的玻璃液面計上。
Explain:
This series collects all kinds of connection forms and structural couplings, nipples, nozzles, rotary couplings, thermowells and other products in the automatic control instrument pipeline system. It is an essential connecting piece in the pipeline with a wide range of varieties, specifications and applications. YZG13 series glass plate level gauge connector is applicable to the glass level gauge of various containers.
性能規范:
□公稱壓力:1.0MPa~3.2MPa
□適用溫度:-70℃~+450℃
□制造材料:20#,H62,1Cr18Ni9Ti,316L,0Cr18Ni12Mo2Ti
□執行標準:《儀表工手冊》樂嘉謙著 第五篇 儀表安裝>>第三章 儀表加工件>>第一節 儀表接頭

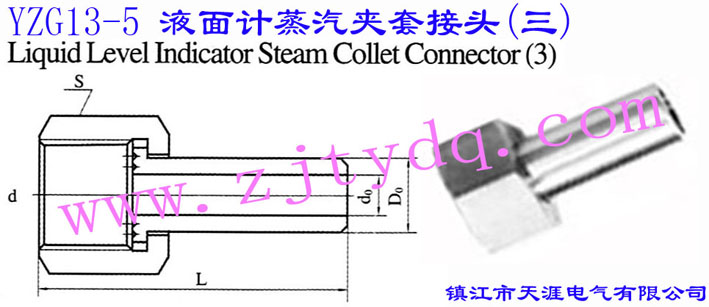

YZG13-5 液面計蒸汽夾套接頭(三)
YZG13-5 Liquid Level Indicator Steam Collet Connector 3

D |
d |
d0 |
L |
S |
代 號Code No. |
8 |
G3/8" |
4 |
50 |
24 |
YZG13-5-1 |
10 |
G3/8" |
6 |
42 |
24 |
YZG13-5-2 |
8 |
G1/2" |
4 |
63 |
30 |
YZG13-5-3 |
YZG13-3 液面計蒸汽夾套接頭(一)、YZG13-4 液面計蒸汽夾套接頭(二)、YZG13-5 液面計蒸汽夾套接頭(三)這三種接頭功能相似,結構形式不一樣,有兩頭為外螺紋的[(一)型],一端外螺紋、一端焊接的[(二)型]和一端焊接、一端內螺紋[(三)型]的,按現場具體情況而選取。
YZG13-3 level gauge steam jacket connector (I), YZG13-4 level gauge steam jacket connector (II), YZG13-5 level gauge steam jacket connector (III),the three types of joints have similar functions and different structural forms, including [(I) type] with two ends of external thread, [(II) type] with one end of external thread and one end of welding, and [(III) type] with one end of welding and one end of internal thread, which are selected according to the specific situation on site.
※注:YZG13-5 液面計蒸汽夾套接頭(三)Liquid Level Indicator Steam Collet Connector 3如有改進,恕不另行通知,以產品實物為準。
